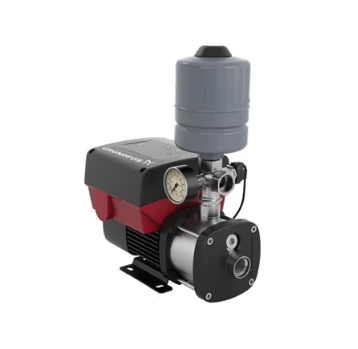

GRUNDFOS CMBE booster set

1,286.67$

100 in stock

100 in stock

Constant water pressure for increased comfort

The CMBE is a booster set that provides constant water pressure for domestic and lighter commercial applications. With a CMBE booster set in the building, end-users will no longer be bothered by fluctuating water pressure and they can even adjust the pressure manually. The pump is compact, easy to install and has very low noise levels. You can use it for single-family homes, two-family homes, apartment buildings, schools and smaller hotels and office buildings.

Constant pressure guaranteed

The integrated speed controller keeps a constant pressure in the pipe system. The control panel makes it possible to change the water pressure manually.

Automatic Operation

CMBE features dry-run protection with auto-restart.

Low noise pump

At only 55 dBA, the CMBE has very low noise levels.

Strong build

Stainless steel shaft, impellers and pump housing ensure long service-life.

Technical Specifications

Maximum flow [l/min]53 – 250
Maximum head [m]44 – 93
Input voltage [V]230
Power output – P2 [kW]0.55 – 1.50
Suction port [“]1, 6/4
Delivery port [“]1, 6/4
Maximum suction lift [m]1 – 6
Drinking water certificate, YES
Vessel volume [l]2
Maximum current [A]3.45 – 9.10
Start pressure [bar], 1
Protection [IP]55
Automatic thermal protectionYES
Dry run protectionYES
Off switchYES
Speed ​​controlYES
Capacitorintegrated
Impeller materialstainless steel
Constructionwith frequency converter
