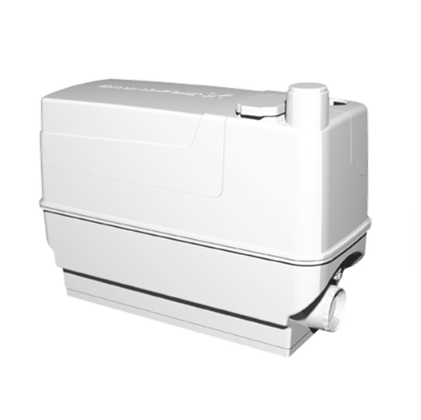

GRUNDFOS SOLOLIFT 2 C-3 automatic lifting stations

498.29$

10 in stock

10 in stock

Delivery across EU within 3-7 business days

%

Sololift2 C-3 is a small, compact automatic lifting station suitable for pumping of greywater (w/o faeces) off places in private dwellings where wastewater cannot be led directly to the sewer by means of a natural downward slope.

Sololift2 C-3 is typically used for:

  • cabinet showers, washbasins, bath tubs, washing machines (max. 90°C) and dishwashers in basements below sewer level or in connection with the renovation or modernisation of existing buildings, where the location may be remote from the main soil pipe so that a natural slope cannot be established.

Sololift2 C-3 is suitable for installation under a washbasin or particularly for confined space conditions in prewall constructions and built-in cabinets. Extremely low switching levels for lowest construction heights, advantageously in case of connection of a shower receptor.

The compact lifting station is equipped with

  • Cable with or without plug (see technical data)
  • Horizontal or vertical fastening possibility of discharge hose connector with several adaptors for pipes with Ø22-40mm
  • Integrated non return valve
  • Dry and high performance motor unit incl. thermal protection, level switch and controller
  • Flexible connectors for inlet (adjustable in height) of pipes Ø36 or 40
  • Manual anti clogging function and separate drain connection for service
  • Venting valve with overflow protection
  • Uplift fixation clips

Design according to EN12050-2 and production inspection by external institute with unique features focused on quick installation, long lasting operation and easy clean service.

Instructions

Technical Specifications

Maximum flow [l/min]204
Maximum head [m]8.50
Input voltage [V]230
Power output – P2 [kW]0.42
Power input – P1 [kW]0.64
Drinking water certificateNO
Vessel volume [l]6
Maximum current [A]3.10
Maximum liquid temperature [°C]75
Cable length [m]1.20
Protection [IP]44
Automatic thermal protectionYES
Dry run protectionYES
Speed ​​controlNO
Capacitorintegrated
Impeller materialnoryl
Constructionwith centrifugal pumps
GrinderNO
