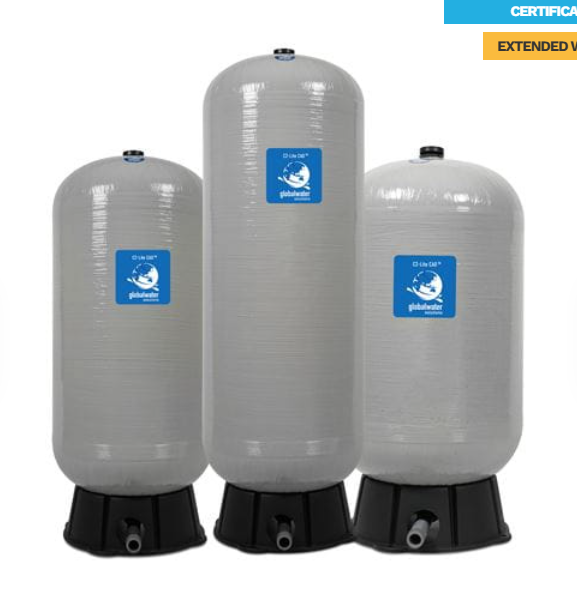

The C2-Lite CAD™ Series represents the proven performance of a GWS steel tank in a lightweight composite design. Efficient and cost-effective, C2-Lite CAD tanks are designed with the patented GWS Challenger™ controlled action diaphragm tank design.

Unlike other composite tanks that hide old worn out bag technology in a plastic shell, the CAD-2 patented membrane construction is stronger, does not wrinkle or wear out. It features a 100% butyl membrane with a precision molded polypropylene copolymer liner for superior air and water separation. This patented design allows each tank size to have a properly sized water chamber to match the withdrawal capacity of that tank.
C2-Lite CAD tanks represent the best value investment and are the highest quality composite tanks available today.

USE

The C2Lite CAD™ series is ideal for a wide range of applications including:

• irrigation
• for pressure boosting systems
• wells
• coastal applications
• beach resorts and golf courses

TECHNICAL PARAMETERS

• nominal volume: 60 – 450 l
• nominal pressure: 8.6 bar
• Maximum operating pressure: 8.6 bar
• factory pressure: 4 bar
• maximum working temperature 49 °C
• minimum working temperature -10°C (avoid freezing)
• connection dimensions: 1″ (60 – 130lv) , 1 1/4″ (200 – 450 lv)

FEATURES AND BENEFITS

Patented CAD-2 membrane technology

The C2-Lite CAD™ Series represents the proven performance of a GWS steel tank in a lightweight composite design. Efficient and cost-effective, C2-Lite CAD tanks are designed with the patented GWS Challenger™ controlled-effect membrane tank design.

Hi-tech quality and construction

• High quality brass air shank with O-ring sealing.
• Robust copolymer polypropylene base.
• Unique three-piece construction.
• Reinforced plastic connection.
• Durable continuous fiberglass filament sealed with epoxy resin.
• Multi-phase testing to ensure the structural integrity of each tank.
• No sweat design.

Durable even in harsh conditions

C2-Lite CAD tanks are easy to install, weatherproof and designed to withstand extreme conditions. When it comes to performance and durability, the GWS C2-Lite CAD design cannot be beaten.

Maintenance-free

C2-Lite CAD tanks are characterised by their quality and maintenance-free construction.

Extended warranty

We offer a 5 year extended warranty on all C2-Lite CAD vessels.
