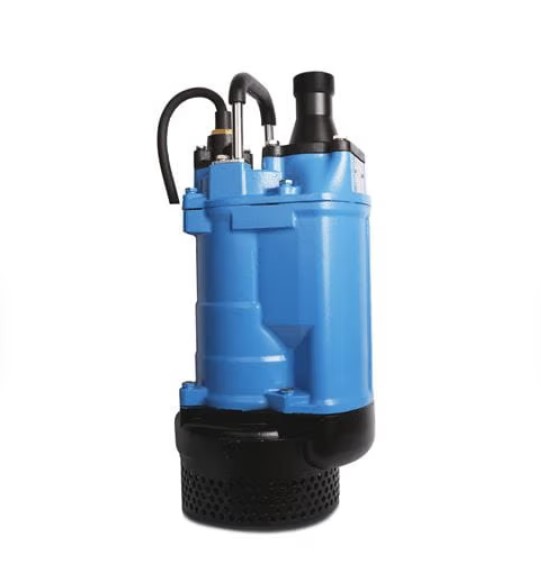

PUMPA blue line PRO PSHD HT

High Temperature Submersible Drainage Pump for pumping liquids up to 80°C. Designed for pumping drainage water in the fields of in civil engineering such as mines, quarries, suitable for draining flooded rooms or for pumping out storage tanks, ponds, ponds, sumps or for rainwater collectors.

929.28$

Submersible Drainage Pump PUMPA BLUE LINE PSHD HT – High Temperature Submersible Drainage Pump for pumping liquids up to 80°C. Designed for pumping drainage water in the fields of in civil engineering, such as mines, quarries, suitable for drainage of flooded rooms or for pumping out storage tanks, ponds, ponds, sumps or for rainwater collectors.

Main advantages

  • The HT model is improved by the level of insulation, rubber material, bearings and motor lubrication.
  • Motor and pump body made of solid cast iron for long life
  • Significantly increased maximum immersion depth due to mechanical high pressure resistant sealing.
  • Semi-open impeller made of high quality chrome alloy.
  • Efficient engine cooling thanks to a drain channel cast as part of the engine cover.
  • Hermetically sealed built-in motor thermal protection.

Application

  • Drainage of drainage water with abrasives
  • For the construction industry – mines, quarries, buildings
  • Drainage of waste water
  • Other applications

The pump can be rented in our rental shop.

Technical Specifications

Maximum flow [l/min]433 – 550
Maximum head [m]20.50 – 31
Input voltage [V]3×400
Power output – P2 [kW]1.50 – 3.70
Delivery port [“]2
Maximum immersion depth [m]25
Drinking water certificateNO
Float switchNO
Maximum current [A]3.50 – 7.70
Maximum liquid temperature [°C]80
Cable length [m]15
Maximum particle size [mm]8.50
Protection [IP]68
Automatic thermal protectionYES
Dry run protectionNO
Off switchNO
Speed ​​controlNO
CapacitorNO
Impeller materialcast iron
Constructionsubmersible
GrinderNO
