PUMPA e-line E-DRIVE PPMS504 automatic pressure booster pump with frequency converter

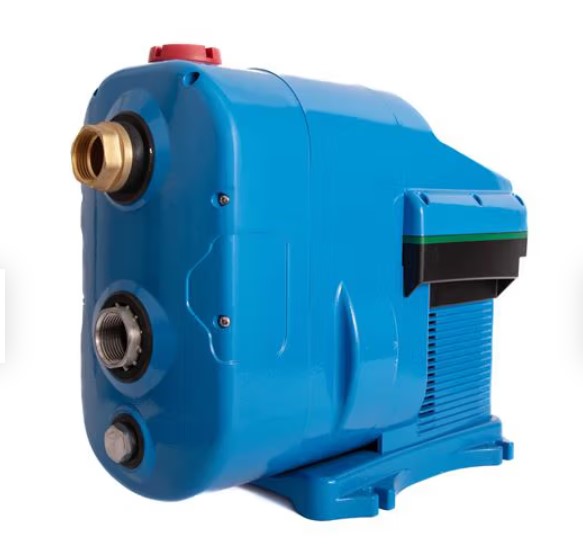

No more worrying about fluctuating water pressure! We present to you the automatic pressure booster pump PUMPA E-LINE E-DRIVE PPMS with frequency converter, with integrated pressure vessel, pressure sensor and non-return valve. PPMS automatically adjusts performance according to your current water supply needs and is suitable for boosting pressure when pumping clean water from wells or reservoirs. Thanks to its compact design, it easily fits into any space, and thanks to its permanent magnet motor technology and intelligent power regulation, it significantly reduces energy consumption.

431.24$

No more worrying about fluctuating water pressure! We present to you the automatic pressure booster pump PUMPA E-LINE E-DRIVE PPMS with frequency converter, with integrated pressure vessel, pressure sensor and non-return valve. PPMS automatically adjusts performance according to your current water supply needs and is suitable for boosting pressure when pumping clean water from wells or reservoirs. Thanks to its compact design, it easily fits into any space, and thanks to its permanent magnet motor technology and intelligent power regulation, it significantly reduces energy consumption.

Use of E-LINE E-DRIVE PPMS PUMP

  • for pumping clean water from wells and reservoirs
  • for gardens and irrigation
  • for increasing the pressure when pumping water from the water supply line, from tanks incl.rainwater tanks and wells

Advantages of the E-LINE E-DRIVE PPMS PUMP

  • Constant water pressure: Enjoy constant water pressure in your home, regardless of how many taps are currently running.
  • Energy saving: Thanks to the permanent magnet motor and intelligent power regulation, it significantly reduces energy consumption.
  • Compact design: Thanks to its compactness, the water plant can easily fit into any space.
  • Low noise: Enjoy comfort without disturbing noise. Our pump operates at a noise level of 50 dB(A) during normal operation, so your home remains a calm and quiet place
  • Easy operation and safety: With integrated protections against dry running, overload and rotor lock, together with soft start and motor stop, maximum safety and easy operation are ensured.
  • Versatile use: Ideal for pumping clean water from wells and reservoirs, watering gardens, or increasing water pressure in the home.

Technical Specifications

Maximum flow [l/min]75
Maximum head [m]42
Input voltage [V]230
Power output – P2 [kW]0.55
Suction port [“]1
Power input – P1 [kW]1.10
Delivery port [“]1
Maximum suction lift [m]8
Drinking water certificateYES
Vessel volume [l]1
Float switchNO
Maximum current [A]5.20
Maximum liquid temperature [°C]55
Maximum pressure [bar]10 – 10
Cable length [m]1
Maximum particle size [mm]0.20
Protection [IP]X4
Automatic thermal protectionYES
Dry run protectionYES
Off switchYES
Speed ​​controlYES
CapacitorNO
Impeller materialnoryl
Constructionwith frequency converter
