Description

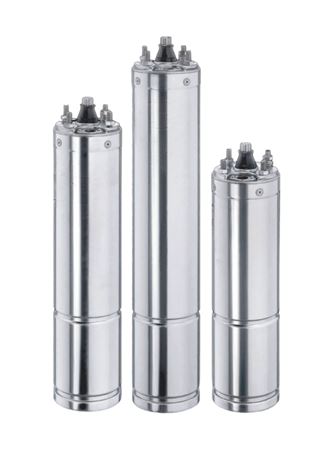

- This is a submersible motor that can be rewound, equipped with replaceable waterproof connectors for easy maintenance and characterized by an exceptionally long service life and good performance under conditions of large voltage fluctuations.
- Components such as the mechanical seal, copper windings, and insulation are of excellent quality.
- All PUMPA 4RP submersible motors undergo rigorous testing and quality control.
Application
- PUMPA 4RP rewindable submersible motors with high operational reliability are designed for use in boreholes with a diameter of 4″ and larger.
Features
- Replaceable watertight cable connector
- CE-approved cable materials
- Non-toxic, premium quality oil, colorless white oil complying with international and national regulations
- Special stator design for high starting torque
- Unique single-phase design for PSC start, start capacitor + PSC start
- Nickel-plated cast iron upper bracket; all motors 100% tested
=======================================================================
Technical Specifications
Input voltage [V]230,
Power output – P2 [kW]0.55 – 1.50
Pump diameter [“]4,
Maximum immersion depth [m]200
Drinking water certificateNO,
Maximum current [A]5 – 10.40
Maximum liquid temperature [°C]35

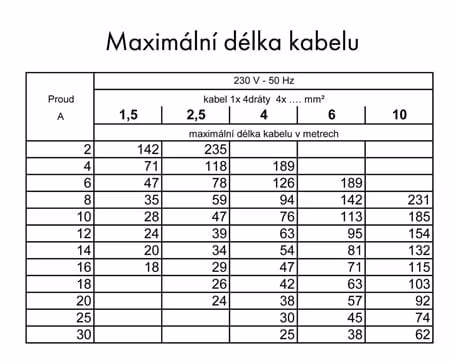

Cable length [m]1.70
Protection [IP]68,
Automatic thermal protectionNO,
Speed controlNO,
Capacitorintegrated,
Maximum borehole diameter [mm]94
Constructionrewindable,
