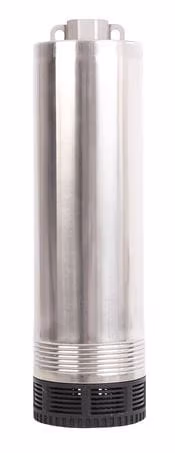

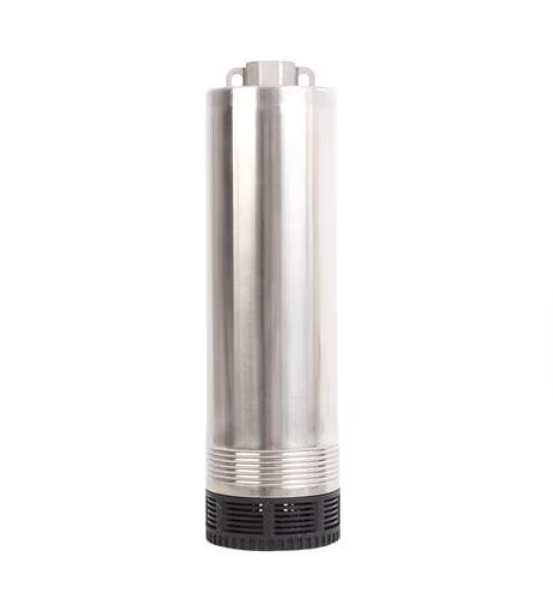

PUMPA Rain 4″ submersible pump 230V

Submersible 4″ stainless steel pump designed for pumping clean water from wells, boreholes, tanks or IBC containers and storage tanks. The pump is designed for use in homes and gardens for water supply and small irrigation systems.

119.79$

100 in stock

100 in stock

Submersible 4″ stainless steel pump designed for pumping clean water from wells, boreholes, tanks or IBC containers and storage tanks. The pump is designed for use in homes and gardens for water supply and small irrigation systems.

Applications

  • Pumping water from wells, boreholes, tanks, IBCs and containers
  • Use in homes and gardens
  • Water supply and small irrigation systems

Distinctive design features

  • Noryl impeller
  • Integrated condenser
  • Pump is equipped with thermal protection
  • 15 m power cable with plug

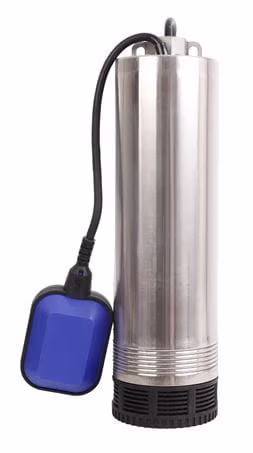

  • The version marked ‘P’ is equipped with a float switch that controls the pump operation depending on the water level

Operating conditions

  • The pump can only be used in a vertical position
  • The required space for installing the pump is a minimum of 132 mm (432 mm for the version with float switch).
  • Maximum pumped liquid temperature: 35 °C
  • Maximum immersion depth: 40 m (with suitable cable length)
  • Maximum sand content: 26 g/m³
  • Maximum particle size: 2 mm

Instructions

=============================================================

Technical Specifications

Maximum flow [l/min]60
Maximum head [m]30
Power output – P2 [kW]0.30
Power input – P1 [kW]0.60
Rated flow [l/m]33
Rated head [m]19
Delivery port [“]1
Pump diameter [“]4
Maximum immersion depth [m]40
Drinking water certificateNO
Float switchNO, YES
Maximum current [A]2.70
Maximum liquid temperature [°C]35
Cable length [m]15
Maximum particle size [mm]2
Protection [IP]68
Automatic thermal protectionYES
Dry run protectionNO
Off switchNO
Speed ​​controlNO
Capacitorintegrated
Impeller materialnoryl
Con
