Description

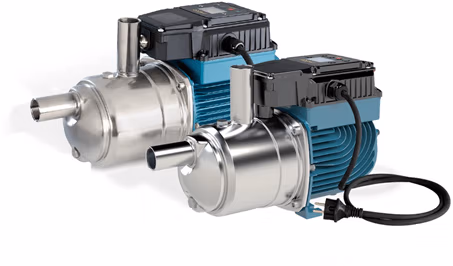

Self-priming booster set with built in frequency converter. MÈTA is a plug and play solution, the pump is equipped with an integrated pressure transducer, an integrated check valve and a built-in pressure vessel. The Vsd controls the start and stop of the pump and allows to keep a constant pressure.
Applications
- For water supply systems.
- For domestic use, for garden use and irrigation.
Features
- integrated frequency converter
- built-in pressure vessel
- high efficiency asynchronous motor
- motor power control
- programmable re-start pressure
- no hydraulic losses due to the measuring devices
- voltage and current control
- monitoring of maximum starting current
- noise level below 50 dB(A) (Meta Small)
Protections
- dry-run protection
- detects the presence of air in the pump casing
- overload control and overheating motor control
- power supply control
- starts per hour control
- detects small leakages in the system
Benefits
- EASY TO INSTALL
Plug And play solution - ECONOMIC SAVING
High efficiency asynchronous motor
Up to 450Wh less energy consumption compared to a standard solution - EASY TO USE

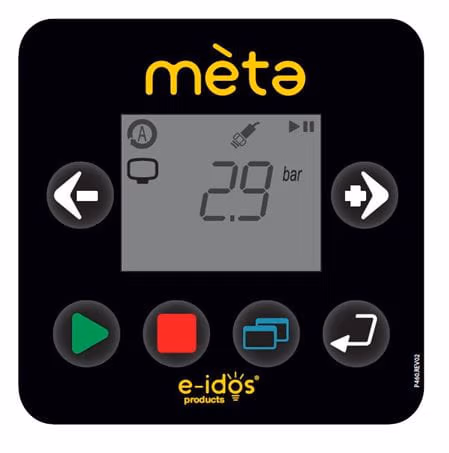

Equipped with a programmable software and, thanks to the analogic pressure sensor, the product allows to set the restart pressure
Technical Specifications

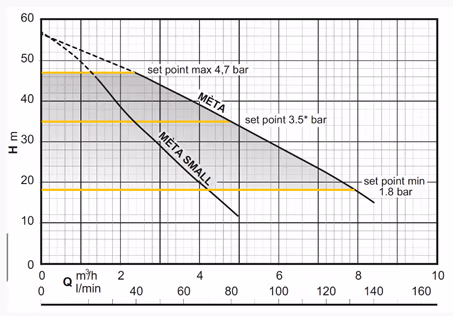

Maximum flow [l/min]83.30 – 140
Maximum head [m]55
Input voltage [V]230
Power output – P2 [kW]1.10
Suction port [“]1
Power input – P1 [kW]0.65
Delivery port [“]1
Maximum suction lift [m]3 – 4
Drinking water certificateYES
Maximum current [A]2.80 – 5.90
Maximum liquid temperature [°C]35
Cable length [m]1.50
Protection [IP]X4
Automatic thermal protectionYES
Dry run protectionYES
Off switchYES
Speed controlYES
Capacitorintegrated
Pump designhorizontal
Impeller materialstainless steel
Constructionself priming
