Description
Construction
Close-coupled self-priming centrifugal pumps with built-in strainer.
Inner basket with Ø 3 mm holes.

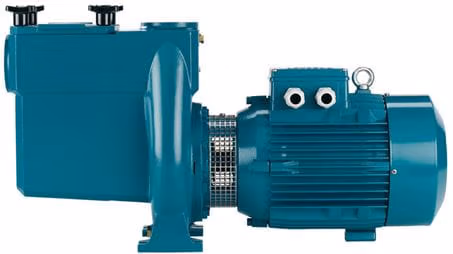

NMP: version with pump casing and lanter bracket in cast iron.

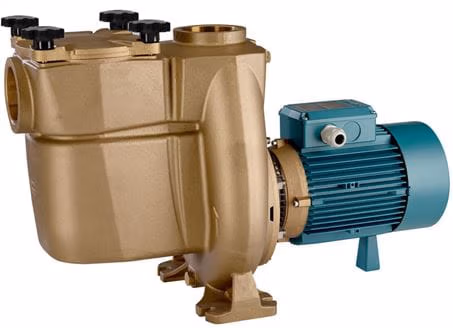

B-NMP: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).
Applications
– For water circulation in swimming pool filtration systems.
– For clean or slightly dirty water with solids in suspension.
Instructions
Technical Specifications
Maximum flow [l/min]250 – 2,000
Maximum head [m]12 – 26.20
Input voltage [V]3×400
Power output – P2 [kW]0.75 – 7.50
Suction port [“]2, 2 1/2, 3
Delivery port [“]2, 2 1/2, 3
Maximum suction lift [m]7
Drinking water certificateNO
Maximum current [A]2.30 – 14.30
Maximum liquid temperature [°C]60
Protection [IP]X4
Automatic thermal protectionNO
Dry run protectionNO
Off switchNO
Speed controlNO
CapacitorNO
Pump designhorizontal
Impeller materialbrass, cast iron
Constructionself priming
