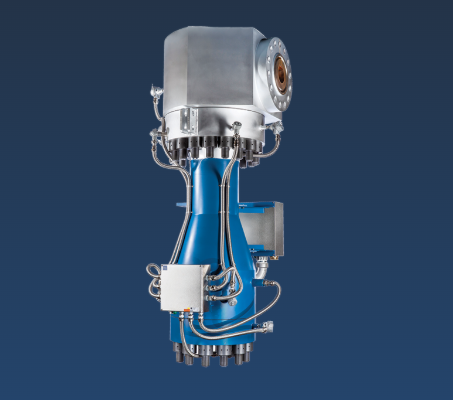

Engineering Canned Pumps [FISB-000T1]

Description

Applications

Engineered Canned Motor Pumps are ideal for the following typical plant applications:

NUCLEAR

• Reactor Water Clean-Up (RWCU)
• Fuel pool
• Heavy water transfer/collection
• Main coolant pump
• Blow Down System Drain/Recirculation
• Emergency diesel fuel transfer
• Radwaste
• Spent fuel pool aux cooling system
• Reactor coolant drain

CHEMICAL / PETROCHEMICAL

• Acids
• Ammonia
• Benzene
• Butenol
• Caustic
• Crude Ester
• Formaldehyde
• Heat transfer oils (Dowtherm, Therminol, Texatherm, etc.)
• Hydrogen Sulfide
• Nickel Catalyst
• Nitroparafins
• Olifins
• Reactor circulation/injection
• Titanium tetrachloride

Ideal for fluids with the following properties:

• High volatility
• Carcinogenic
• Corrosive
• Lethal
• High temperature
• Low temperature
• Radioactive
• Polymerizing

Codes & Specifications

Operating Data

MOTOR	US	SI
Power	350HP	335kW
Voltage	380-575V	380-575V
Poles	2, 4	2, 4
VFD Compatible	Yes	Yes
Design Pressure	0-6000+psig	0-415 bar
Design Temperature	-184 to 750ºF	-120º to 400ºC

PUMP	US	SI
Flow	Up to 3,000* USgpm	680*m3/hr
Head	Up to 1000*ft	305*m

Codes and Compliances:

• ASME Section VIII and III including stamp (N)
• Hydraulic Institute
• Pressure Equipment Directive (PED)
• 10CFR21 and 10CFR50 (Nuclear)
• RCC-M and RCC-E
• Other international codes as required
