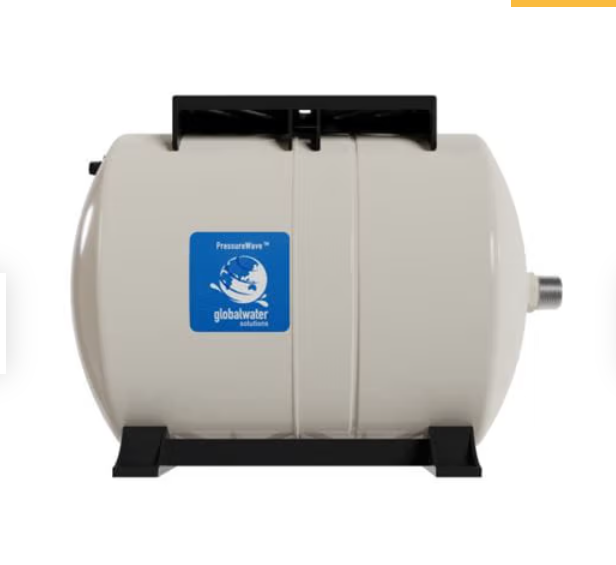

GWS PressureWave PWB-LH maintenance free horizontal expansion vessels

• Capacity: 2 – 150 liter / 0.5 – 40 gallon
• Maximum working pressure: 10 bar / 150 psi
• Factory pre-charge: 1.9 bar / 28 psi
• Maximum operating temperature: 90° C / 194° F

PressureWave™ tanks are superior quality, versatile pressure vessels suitable for a range of applications including:

• Booster systems
• Well systems
• Irrigation systems
• Thermal expansion
• Hydronic heating expansion
• Hydraulic hammer arresting
• Clean water backwash for Ultra-Filtration systems
• PressureWave™ tanks undergo rigorous testing and inspection throughout the production process to ensure optimum structural integrity and to ensure they meet the highest standard in terms of performance and material certifications.

PressureWave™ tanks are the number one selling tanks in the industry and are the top choice for the world’s leading pump manufacturers and distributors.

Features & Benefits

• Maintenance Free
• Diaphragm design
• Patented stainless steel water connection
• Virgin polypropylene liner
• Two-part polyurethane, epoxy primed paint finish
• Leak-free, O-ring sealed air valve cap
• Inline models equipped with reinforced connection plate (RCP)
