Description
Construction

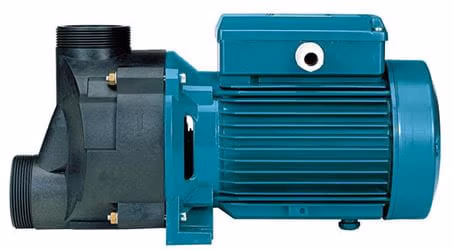

Self-draining, single-impeller pumps, with motor insulated from pumped water, constructed with high quality, corrosionproof plastic materials, with stainless steel diffuser.
Compact design (158 mm wide).
PVC pipe connections:
Ports for cementing joint, with external thread for union coupling.
Applications
– For spas, hydromassage bathtubs and whirlpool baths.
Instructions
Technical Specifications
Maximum flow [l/min]216 – 300
Maximum head [m]12 – 17.30
Input voltage [V]3×400
Power output – P2 [kW]0.45 – 1.10
Suction port [“]2 1/4
Delivery port [“]2 1/4
Maximum current [A]1.60 – 2.70
Maximum liquid temperature [°C]60
Protection [IP]X5
Automatic thermal protectionNO
Dry run protectionNO
Off switchNO
Speed controlNO
CapacitorNO
Impeller materialnoryl
Constructionmonoblock
