Description
Your advantages
- Simple: Plug & Pump system
- Efficient: Highly efficient hydraulics, low electricity consumption and very compact thanks to motor optimisation
- Automatically functioning system, avoidance of fluid hammers thanks to pressure switching and diaphragm pressure vessel
- Low-noise: Noise level between 56 dB(A) and 64 dB(A)
Construction

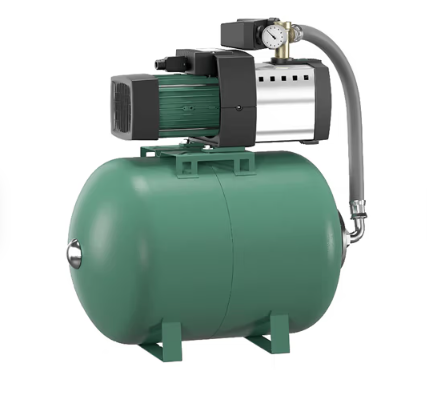

Water-supply system with diaphragm pressure vessel in non-self-priming version (HiMulti 3 H) or self-priming version (HiMulti 3 H P)
Application
- Water supply (drinking water certification in accordance with ACS)
- Sprinkling
- Irrigation and spraying
- Rainwater utilisation
Equipment/function
- Directly flanged motor
- Pressure switch
- Diaphragm pressure vessel (with replaceable diaphragm)
- Connection cable with plug
- Thermal motor protection switch
Scope of delivery
- Pump
- Pressure switch
- Pressure gauge
- Diaphragm pressure vessel (contents 50 l or 100 l)
- Pressure hose with steel housing and screwed connection
- 1 piece plastic connector with seal for manual connection to the inlet pipe
- Wilo-Connector (electrical quick connector)
- Installation and operating instructions
Materials
- Pump housing in Technopolymer with ACS, WRAS and KTW drinking certifications
- Impellers and stage casing made of Noryl 30% GF with drinking water certification in accordance with ACS, WRAS and KTW
- Pump cover and shaft made of stainless steel
- Mechanical seal made of ceramic/carbon
Instructions
Technical Specifications
Maximum flow [l/min]108.30
Maximum head [m]53
Input voltage [V]230,
Power output – P2 [kW]0.80
Suction port [“]1,
Delivery port [“]1,
Maximum suction lift [m]8
Drinking water certificateNO,
Vessel volume [l]100
Maximum current [A]4.60
Protection [IP]54,
Automatic thermal protectionYES,
Dry run protectionNO,
Off switchYES,
Speed controlNO,
Capacitorintegrated,
Pump designhorizontal,
Impeller materialstainless steel,
Constructionwith expansion vessel,
