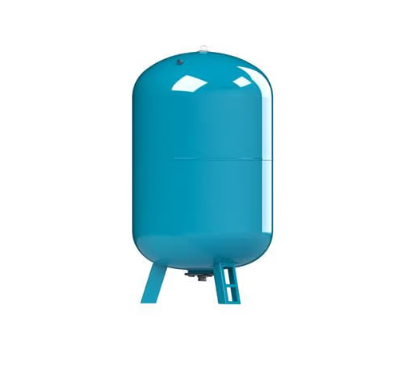

CIMM AFC-AFE/CAR CE 16 bar 18-300 l

Application:

• Reducing excess pressure in hydraulic systems
• Hot and cold service water circuits
• Pressure systems
• Heating and cooling circuits

Main features:

• EPDM replacement bag: manufactured according to DIN 4807
• Max. working pressure: 16 bar
• Operating temperature: –10 to +100 °C (–10 to +70 °C for volumes of 200–300 l)
• Standard pressure: 2.5 bar (for volumes of 100–300 l)
• Corrosion protection: water does not come into contact with metal parts thanks to the PP cover and internal separation system
• Optional pull rod: holds the diaphragm in the correct position, distributes the load evenly and extends the service life of the tank
• Epoxy powder coating: ensures resistance to oxidation and a high-quality finish
• Certified for drinking water
• Made in Italy
