Description
Description

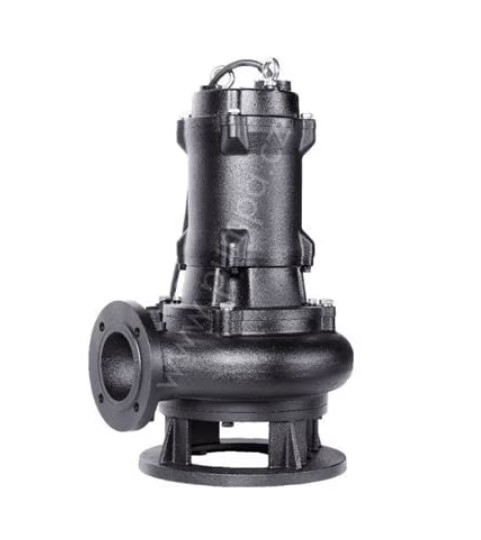

Slurry pump with circulating channel wheel. Suitable for pumping wastewater containing coarse impurities.
Use
- wastewater pumping
- drainage water pumping
- rainwater pumping
- industrial applications
- gas stations, sewage treatment plants
Technical Specifications
Maximum flow [l/min]1,217 – 8,166.70
Maximum head [m]11 – 24
Input voltage [V]3×400
Power output – P2 [kW]1.50 – 15
Rated flow [l/m]800 – 5,000
Rated head [m]6 – 17
Delivery port [“]DN80, DN100, DN150, DN200
Maximum immersion depth [m]10 – 20
Float switchNO
Maximum current [A]3.70 – 28.60
Maximum liquid temperature [°C]40
Minimum level height [mm]230 – 325
Cable length [m]8 – 15
Maximum particle size [mm]50 – 80
Protection [IP]68
Automatic thermal protectionNO
Dry run protectionNO
Off switchNO
Speed controlNO
CapacitorNO
Impeller materialcast iron
Constructionsubmersible
GrinderNO
