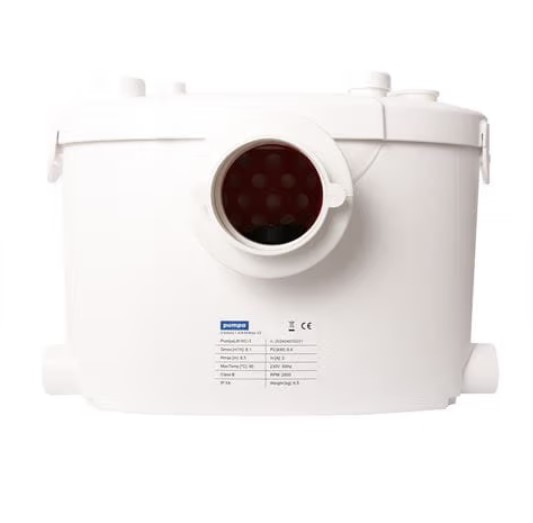

Description
The compact pumping system is designed for pumping shower, washbasin and/or bidet wastewater and toilet wastewater below the sewer level or in connection with the renovation or modernisation of existing buildings where a natural pipe gradient cannot be created.
Application
- for pumping toilet waste water with 3 additional inlets for the discharge of shower, washbasin and/or bidet water below the level of the sewer or in connection with the renovation or modernisation of existing buildings where a natural pipe gradient cannot be created
- an example of installation and application requirements are included in the instructions.
- for domestic use only
- for pumping liquids between 4 °C and 90 °C
- only toilet paper, faeces and waste water may enter the pump. Do not throw other waste into the toilet.
Instructions
Technical Specifications
Maximum flow [l/min]135
Maximum head [m]8.50
Input voltage [V]230
Power output – P2 [kW]0.40
Drinking water certificateNO
Vessel volume [l]14
Float switchYES
Maximum current [A]2
Maximum liquid temperature [°C]90
Cable length [m]1.70
Protection [IP]X4
Automatic thermal protectionYES
Dry run protectionNO
Off switchYES
Speed controlNO
Capacitorintegrated
Impeller materialnoryl
GrinderYES
