Description

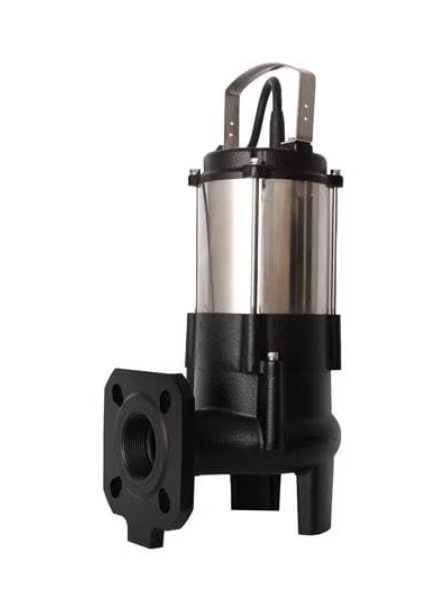

Wastewater pump with Vortex impeller. Suitable for pumping wastewater containing impurities up to 50 mm.
Application
- Pumping wastewater from residential buildings, municipalities, industrial plants, farms, etc.
- Pumping of drainage and rainwater
- Sewage treatment plants
- Sewage pumping stations
Installation options
- Installation R (default) – elbow with 6/4’ male thread included in the delivery
- Installation Y – flanged elbow
- Installation Z – starter
Technical Specifications
Maximum flow [l/min]316 – 483
Maximum head [m]8.50 – 15
Input voltage [V]3×400
Power output – P2 [kW]0.45 – 1.50
Delivery port [“]DN50
Maximum immersion depth [m]10
Drinking water certificateNO
Float switchNO
Maximum current [A]1.30 – 3.20
Maximum liquid temperature [°C]40
Cable length [m]15
Maximum particle size [mm]50
Protection [IP]68
Automatic thermal protectionNO
Dry run protectionNO
Off switchNO
Speed controlNO
CapacitorNO
Impeller materialcast iron
Constructionsubmersible
GrinderNO
