Description

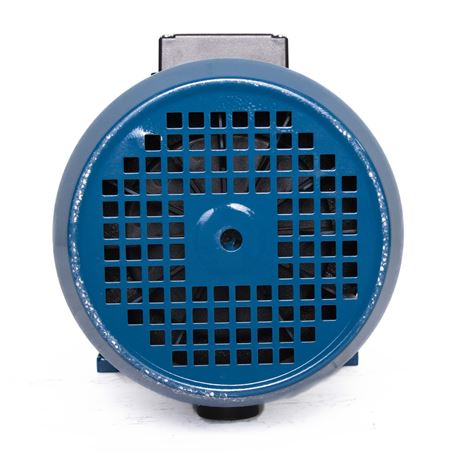

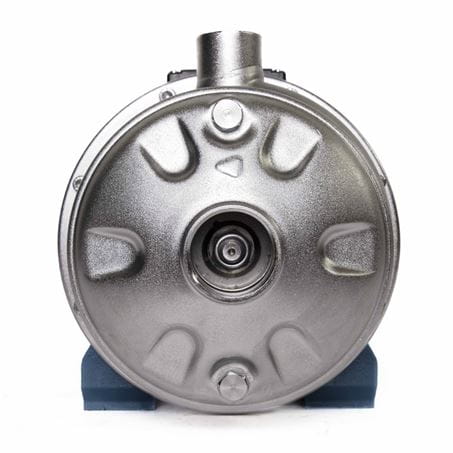

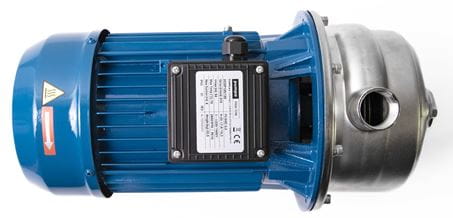

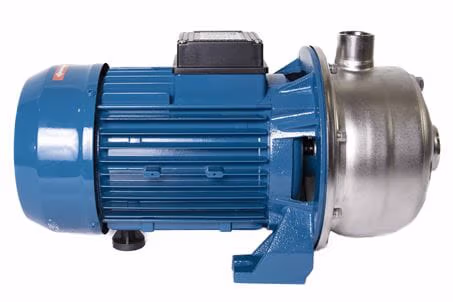

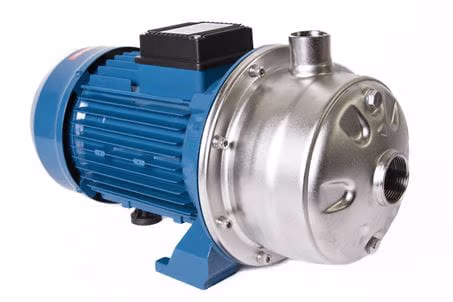

Centrifugal pumps with two impellers PUMPA INOX LINE 2CDP. The hydraulic part of the pumps is made entirely of high-quality AISI304 stainless steel. The pumps are suitable for industrial use. They are used for water supply, pressure boosting, irrigation, food processing, circulation and cooling systems.
Main advantages
- High efficiency – the pump is equipped with two impellers, which ensure high discharge and high efficiency.
- Corrosion protection – parts that come into contact with liquid are made of AISI 304 stainless steel.
- Motor: three-phase 3×230/400V, 50HZ
- Safe and reliable operation – the pump is equipped with a mechanical seal
Applications
- Water transport for industrial and domestic applications
- Pressure boosting in systems
- Irrigation
- Cooling and circulation systems
- Food industry applications
- Water treatment
- Car washes
================================================================
Technical Specifications
Maximum flow [l/min]130 – 280
Maximum head [m]42 – 70
Input voltage [V]3×400
Power output – P2 [kW]1 – 4
Suction port [“]5/4, 6/4
Power input – P1 [kW]1.38 – 4.70
Rated flow [l/m]70 – 200
Rated head [m]30 – 56
Delivery port [“]5/4, 6/4
Maximum suction lift [m]6
Drinking water certificateNO
Maximum current [A]2.10 – 7.40
Maximum liquid temperature [°C]70
Maximum pressure [bar]10 – 10
Protection [IP]55
Automatic thermal protectionNO
Dry run protectionNO
Off switchNO
Speed controlNO
CapacitorNO
Pump designhorizontal
Impeller materialstainless steel
Constructionmulti-stage
