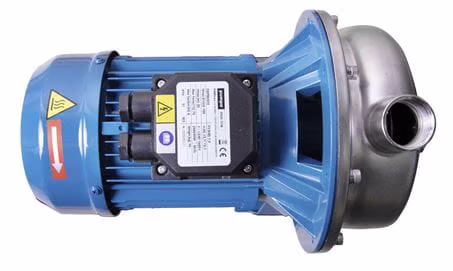

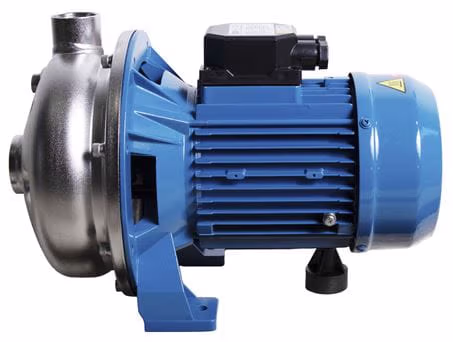

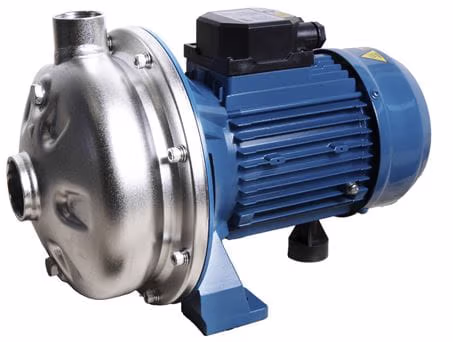

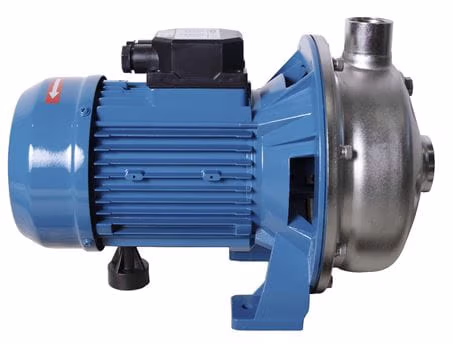

PUMPA inox line CDP centrifugal pumps with one impeller 3x400V
PUMPA inox line CDP centrifugal pumps with one impeller 3x400V - Image 2
PUMPA inox line CDP centrifugal pumps with one impeller 3x400V - Image 3
PUMPA inox line CDP centrifugal pumps with one impeller 3x400V - Image 4
PUMPA inox line CDP centrifugal pumps with one impeller 3x400V - Image 5
PUMPA inox line CDP centrifugal pumps with one impeller 3x400V - Image 6
PUMPA inox line CDP centrifugal pumps with one impeller 3x400V - Image 7
PUMPA inox line CDP centrifugal pumps with one impeller 3x400V - Image 8

PUMPA inox line CDP centrifugal pumps with one impeller 3x400V

304.92$

Centrifugal pumps with one impeller PUMPA INOX LINE CDP. The hydraulic part of the pumps is made entirely of high-quality AISI304 stainless steel. The pumps are suitable for industrial use. They are used for water supply, pressure boosting, irrigation, food processing, circulation and cooling systems.

Main advantages

  • High efficiency: the pump is equipped with a single impeller, which ensures high discharge and high efficiency
  • Corrosion protection: parts that come into contact with liquids are made of AISI 304 stainless steel
  • Motor: three-phase 3x400V 50Hz
  • Safe and reliable operation: the pump is equipped with a mechanical seal
  • Wide range of applications: industrial and domestic applications

Use

  • Water transport for industrial and domestic applications
  • Pressure boosting in systems
  • Irrigation
  • Cooling and circulation systems
  • Food applications
  • Water treatment
  • Washing lines



=================================================



Technical Specifications

Maximum flow [l/min]110 – 250
Maximum head [m]20 – 39
Input voltage [V]3×400,
Power output – P2 [kW]0.55 – 2.20
Suction port [“]5/4, 6/4
Power input – P1 [kW]0.75 – 2.80
Rated flow [l/m]70 – 200
Rated head [m]14 – 28
Delivery port [“]5/4, 6/4
Maximum suction lift [m]6
Drinking water certificateNO
Maximum current [A]1.60 – 4.30
Maximum liquid temperature [°C]70
Maximum pressure [bar]10 – 10
Protection [IP]55
Output voltage [V]3×400
Automatic thermal protectionNO
Dry run protectionNO
Off switchNO
Speed ​​controlNO
CapacitorNO
Pump designhorizontal
Impeller materialstainless steel
Constructioncentrifugal

100 in stock

Compare
Category: Brand:

Description

Centrifugal pumps with one impeller PUMPA INOX LINE CDP. The hydraulic part of the pumps is made entirely of high-quality AISI304 stainless steel. The pumps are suitable for industrial use. They are used for water supply, pressure boosting, irrigation, food processing, circulation and cooling systems
