PUMPA ASE domestic water pump with electronic regulation

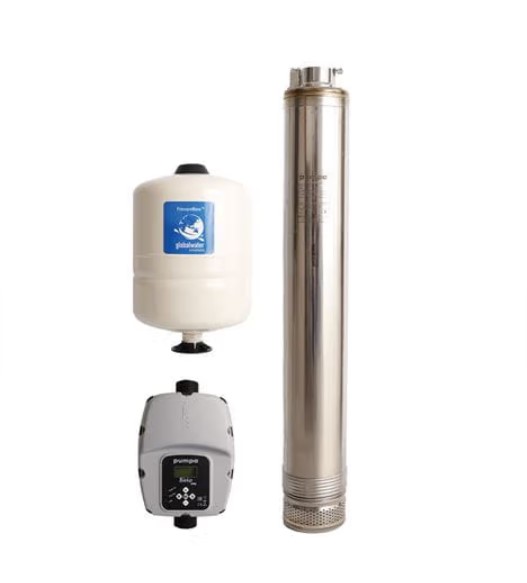

Domestic water pump with electronic regulation by frequency converter. The set consists of 3″ ASE submersible pump with frequency converter, 8l pressure vessel and other accessories.

The set includes

• 3″ multistage monobloc submersible pump
• SIRIO IPM frequency converter
• GWS 8l pressure vessel
• cable length 1.5 / 30 / 50 m
• Tkus fitting

Application and operating conditions

• For supplying clean water from wells and boreholes
• The submersible pump is designed for boreholes from 100 mm diameter
• Designed for e.g. pumping water from underground sources, for pumping water, for retention tanks and for irrigation systems
• For domestic and industrial water supply
• For pumping water with a temperature not exceeding 35 °C

The pump is equipped with a highly efficient permanent magnet motor and can only be operated with the SIRIO IPM frequency converter.

Distinctive design features

• The pump is equipped with a synchronous 4-pole three-phase motor operating in the 100/200 Hz range, which guarantees low energy consumption, long service life and reliability
• Pump body, motor housing, cover and strainer in AISI 304 stainless steel
• Maximum sand content in the pumped liquid: 50 g/m3
• Maximum number of consecutive starts per hour: 40 repetitions – maintain a 60 second delay between successive starts – higher repetitions may damage the pump.
• The frequency converter is equipped with a 1.5 meter cable with plug for voltage 1~ 230 Vac ± 10% – 50/60 Hz.
• The frequency converter has a built-in pressure sensor and check valve.
• The pump is designed for continuous operation.

Functions

• Automatic start and stop depending on the water demand required by the user.
• Protection against dry running
• Soft start and water hammer protection
• Protection against undervoltage and overvoltage
• Protection against overheating and overvoltage
