Description

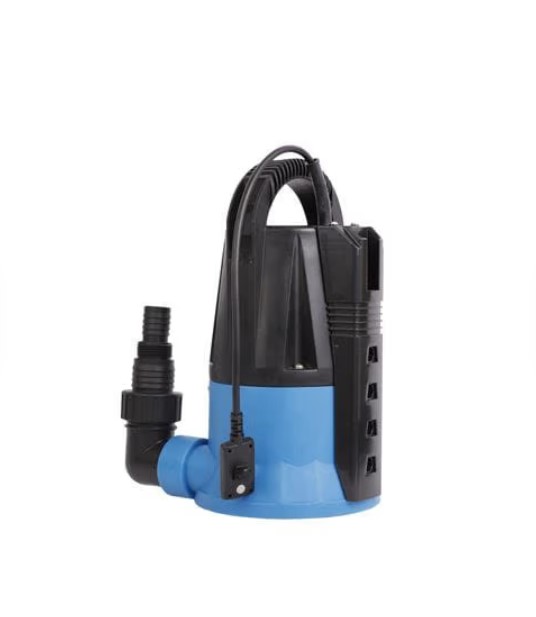

The plastic submersible pump PUMPA blue line PSDR401P is designed for pumping clean or slightly polluted drainage water from basements and tanks, for irrigation, for pumping pool water or for pumping storage tanks. The pump is equipped with both automatic and manual modes. A magnetic float switch allows automatic and manual control of the pump according to the water level. The upper metal contact is used to start the pump, the lower metal contact to stop it. When the water level drops below the magnetic float switch, the pump automatically switches off after 6 seconds. When the water level reaches above the float switch, the pump automatically starts
Benefits
- thanks to the stainless steel base, it pumps water up to 5 mm from the bottom
- Float switch with 5 positions (4 automatic, 1 manual)
Use
- for pumping clean or slightly dirty drainage water
- for irrigation and pumping of storage tanks
- for draining swimming pools
- pumping tanks
Technical Specifications
Maximum flow [l/min]60
Maximum head [m]6
Input voltage [V]230
Power output – P2 [kW]0.28
Delivery port [“]1, 5/4, 6/4
Maximum immersion depth [m]7
Drinking water certificateNO
Float switchYES
Maximum current [A]1.80
Maximum liquid temperature [°C]35
Cable length [m]7
Maximum particle size [mm]3
Protection [IP]X8
Automatic thermal protectionYES
Dry run protectionNO
Off switchNO
Speed controlNO
Capacitorintegrated
Impeller materialnoryl
Constructionsubmersible
GrinderNO
